brushless dc motors

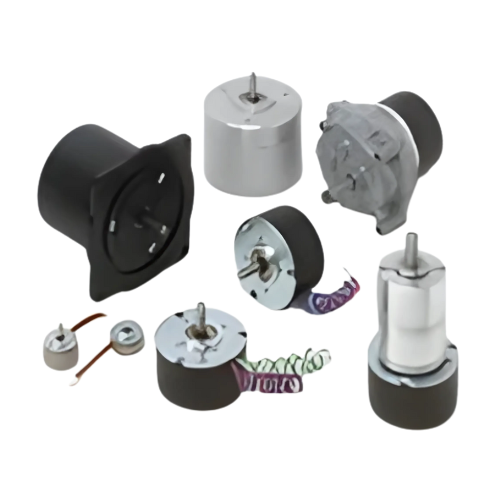

The Premotec Brushless DC motors use an external

rotor and an iron core stator to minimize cogging

and to maximize the output torque. Supplied in an

extremely compact package, Premotec brushless

motors are available with or without integrated

electronics. The use of high quality components

ensures a motor life in excess of 20.000 hours. The

torque for these motors ranges from 2.5 to 210

mNm. The speeds range from 1000 to 10.000 rpm.


The brushless motor performance is summarized below.

Specifications Overview

Frame Size (mm) 21 - 68
Bus Voltage (VDC) 6 - 24
Rated Speed (RPM) 3,650 - 7,150
Rated Power (W) 1 - 50
Need More Info? Click Here

Need Assistance? Call: 203-596-1258

Kinetimax BL21 EE

Part Numbers Voltage Direction Speed Watt
4322 016 21001 10 Reversible 10000 1.5
4322 016 21011 12 Reversible 5600 1

Kinetimax BL24 EB 2 Wire

Part Numbers Voltage Direction Speed Watt
4322 016 21492 6 CW 7150 2.2
4322 016 21502 6 CCW 7150 2.2
4322 016 21512 12 CW 7050 2.7
4322 016 21522 12 CCW 7050 2.7
4322 016 21532 24 CW 7070 2.7
4322 016 21542 24 CCW 7070 2.7

Kinetimax BL24 EB 5 Wire

Part Numbers Voltage Direction Speed Watt
4322 016 21513 6 REV 7150 2.2
4322 016 21523 12 REV 7050 2.7
4322 016 21533 24 REV 7070 2.7

Kinetimax BL32 EB 5 Wire

Part Numbers Voltage Direction Speed Watt
4322 016 30429 12 REV 4600 12
4322 016 30430 24 REV 6000 16

Kinetimax BL32 EB 2 Wire Double Shaft

Part Numbers Voltage Direction Speed Watt
4322 016 30431 12 CW 4600 12
4322 016 30432 12 CCW 4600 12
4322 016 30433 24 CW 6000 16
4322 016 30434 24 CCW 6000 16

Kinetimax BL32 EB 4 Wire Double Shaft

Part Numbers Voltage Direction Speed Watt
4322 016 30435 12 CW 4600 12
4322 016 30436 12 CCW 4600 12
4322 016 30437 24 CW 6000 16
4322 016 30438 24 CCW 6000 16

Kinetimax BL42 EB

Part Numbers Voltage Direction Speed Watt
4322 016 38002 12 REV 5200 29
4322 016 38003 12 REV 5200 29
4322 016 38004 12 REV 5200 29
4322 016 38007 24 REV 5300 32
4322 016 38008 24 REV 5300 32
4322 016 38009 24 REV 5300 32
Part Numbers Voltage Direction Speed Watt
4322 016 48021 12 CCW 4600 12
4322 016 48025 12 CW 4600 12
4322 016 48031 24 CCW 4600 12
4322 016 48035 24 CW 4600 12

Kinetimax BL54 EB Series / BL48 2 wire

Kinetimax BL54 EB Series / BL48 4 wire

Part Numbers Voltage Direction Speed Watt
4822 016 48003 12 CCW 4550 8
4322 016 48007 12 CW 4550 8
4322 016 48013 24 CCW 4550 8
4322 016 48017 24 CW 4550 8
4322 016 48023 12 CW 4600 12
4322 016 48027 12 CW 4600 12
4322 023 48033 24 CCW 4600 12
4322 016 48037 24 CW 4600 12

Kinetimax BL54 EB Series / BL48 5 wire

Part Numbers Voltage Direction Speed Watt
4322 016 48621 12 REV 5400 10
4322 016 48622 24 REV 6200 12
4322 016 48623 12 REV 4450 12
4322 016 48624 24 REV 6100 16

Kinetimax BL68 EB / BL58 EB series

Part Numbers Voltage Direction Speed Watt Shaft Length
4322 016 58003 24 REV 4330 35 25mm
4322 016 58004 24 REV 4330 35 20mm
4322 016 58013 24 REV 6000 50 25mm
4322 016 58014 24 REV 6000 50 20mm
4322 016 58023 24 REV 3650 50 25mm
4322 016 58033 24 REV 4330 35 Brake
4322 016 58041 24 REV 6000 35 25mm
