iron core dc motors

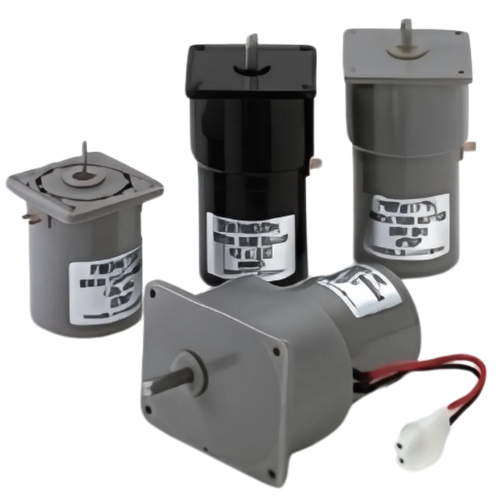

The Premotec Iron core motors have a modular
structure that allows the motor to be integrated
with two gearbox types in ratios from 6 to 729:1.
The use of plastic in these motors minimizes cost
whilst giving high resistance to chemicals and
corrosion. Reliability is maximized by using
internal spark suppression. Metal-geared versions
are available for higher torque versions. Below is a
list of our iron core motor program.
The iron core motor performance is summarized below.
Specifications Overview
| Frame Size (mm) | 25 - 57 |
| Bus Voltage (VDC) | 6 - 24 |
| Rated Speed (RPM) | 3500 - 7000 |
| Rated Power (W) | 1 - 25 |
Need Assistance? Call: 203-596-1258
documents & resources
M2530 Series
| Part Numbers | Volts | Gear Ratio | No Load Speed | Watts |
|---|---|---|---|---|
| M2530-09A | 9 | Motor | 5500 | 1.1 |
| M2530-S25A81 | 9 | 81 ; 1 | 75 | 0.65 |
IC34 Spur gearbox
| Part Numbers | Volts | Gear Ratio | No Load Speed | Watts |
|---|---|---|---|---|
| 9904 120 52401 | 6 | 5.57 : 1 | 886 | 3 |
| 9904 120 52602 | 12 | 9 : 1 | 400 | 3 |
| 9904 120 52605 | 12 | 50 : 1 | 73 | 3 |
| 9904 120 52609 | 12 | 451.25 : 1 | 7.1 | 3 |
IC34 Rectangle Spur gearbox
| Part Numbers | Volts | Gear Ratio | No Load Speed | Watts |
|---|---|---|---|---|
| 9904 120 55606 | 12 | 81 : 1 | 70 | 3 |
| 9904 120 52814 | 12 | 81 : 1 | 62.2 | 3 |
IC36 Spur geared motor
| Part Numbers | Volts | Gear Ratio | No Load Speed | Watts |
|---|---|---|---|---|
| M 3650-1242 | 12 | motor | 4200 | 4 |
| M 3657-1242 | 12 | motor | 4200 | 7 |
| M 3657-1242-S37M030 | 12 | 30 : 1 | 140 | 7 |
M3657-S36A30
| Part Numbers | Volts | Gear Ratio | No Load Speed | Watts |
|---|---|---|---|---|
| M3757-S36A30-b | 12 | 30:1 | 110 | 3.5 |
Power Your Performance with Iron Core DC Motors Innovation
Harnessing the power of advanced technology, we at MJK Inc. provide exceptional solutions centered around iron core dc motors for various applications. Our extensive experience in motion systems ensures that we deliver high-performance motor control, precision-engineered gear motors, and advanced servo and stepper motors. We understand the unique challenges faced by industries in Ohio, and our dedication to quality means that every product we offer is designed for efficiency and reliability. Together, we can elevate your operations with our cutting-edge motor solutions. Connect with us today to learn more about how we can power your success with iron core dc motors.
Where Can I Find Iron Core DC Motors in Ohio?
Discovering innovative solutions in motion technology is what we do best. In Ohio, our focus on high-performance systems, particularly iron core dc motors
, sets us apart in the industry. We pride ourselves on being a trusted leader in providing precision-engineered gear motors and advanced servo solutions. Our team understands the significance of reliability and efficiency, which is why our iron core dc motors
are meticulously designed to meet diverse application needs. We are passionate about custom solutions, ensuring that each iron core dc motor
is tailored to your exact specifications for optimal performance. With our commitment to engineering excellence, MJK Inc. is dedicated to empowering businesses with superior technology and unbeatable quality in iron core dc motors. Let us partner with you to propel your projects forward, driving productivity and innovation every step of the way with iron core dc motors.
